How Is Monolithic Micro-LED Transforming Next-Generation Display Technology?

Monolithic Micro-LED Market technology is becoming one of the most important developments in the display and optical communication industry. Companies are increasingly focusing on improving manufacturing efficiency, reducing power consumption, and enabling ultra-compact high-resolution displays for future applications.

What Is Driving Interest in Monolithic Micro-LED?

Traditional Micro-LED production typically requires separate red, green, and blue chips to be assembled individually. This process increases manufacturing complexity and alignment challenges while also affecting scalability.

Monolithic Micro-LED technology simplifies this approach by integrating RGB emission directly onto a single wafer during one fabrication process. According to, Aledia successfully demonstrated a fully functional monolithic RGB epitaxial wafer capable of producing red, green, and blue light from one epi wafer processed in a single run.

This achievement is significant because it reduces the number of manufacturing stages while improving integration efficiency. The company’s nanowire-based architecture allows simultaneous growth of nanowires ranging from 100 nm to 400 nm depending on emitted color. Such integration can simplify future production of advanced microdisplays and wearable technologies.

How Is Aledia Advancing RGB Integration?

Aledia’s breakthrough demonstrates how nanowire engineering can support next-generation display systems. The company achieved a sub-pixel pitch of 2.5 μm, corresponding to a 5.0 μm × 5.0 μm pixel size. According to the company announcement published through, this performance exceeds several current monochrome 2D Micro-LED benchmarks.

The smaller pixel architecture is especially important for augmented reality devices and smart glasses, where display compactness and image sharpness are critical. Aledia also stated that it is pursuing a future roadmap targeting a 2.0 μm sub-pixel pitch for both monochrome and monolithic RGB displays.

Another important aspect of the announcement is that the milestone was achieved on the company’s first processed lot. This indicates growing manufacturing robustness and suggests that scaling production may become more practical in the coming years.

How Monolithic Integration Simplifies Micro-LED Manufacturing

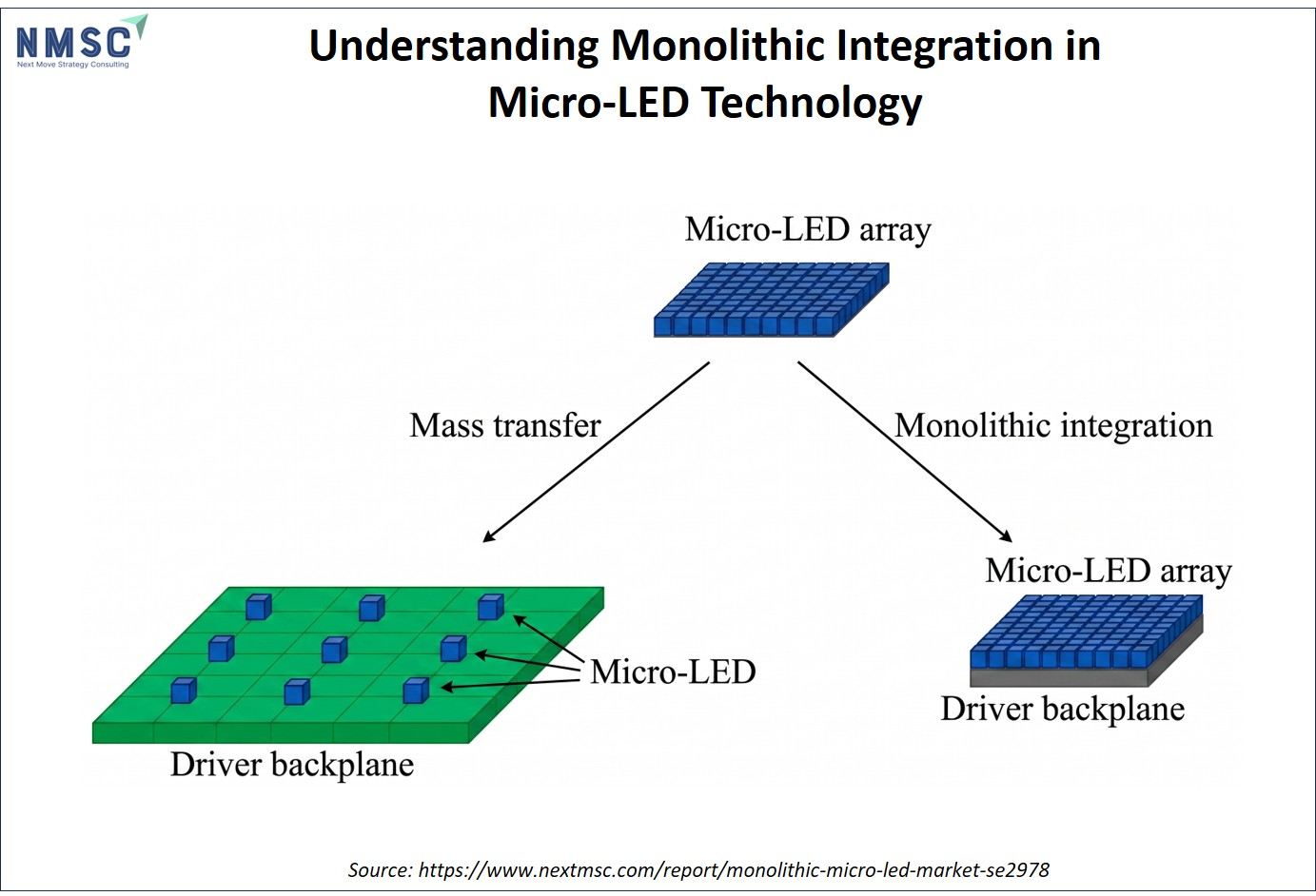

The visual explains how monolithic integration differs from traditional mass transfer techniques in Micro-LED fabrication.

In conventional mass transfer systems, individual Micro-LED components must be physically positioned onto the display backplane. As pixel density increases, this process becomes more difficult and time-consuming. The left section of the image reflects this challenge by showing multiple Micro-LED units placed individually across the backplane surface.

The right section presents monolithic integration, where the Micro-LED array and driver backplane are combined into a more unified structure. This integration reduces manufacturing complexity and supports smaller pixel pitches required for next-generation display technologies.

The image effectively highlights the industry shift toward monolithic architectures for achieving higher scalability, better alignment precision, and more compact display solutions.

How Is Monolithic Micro-LED Expanding into AI Infrastructure?

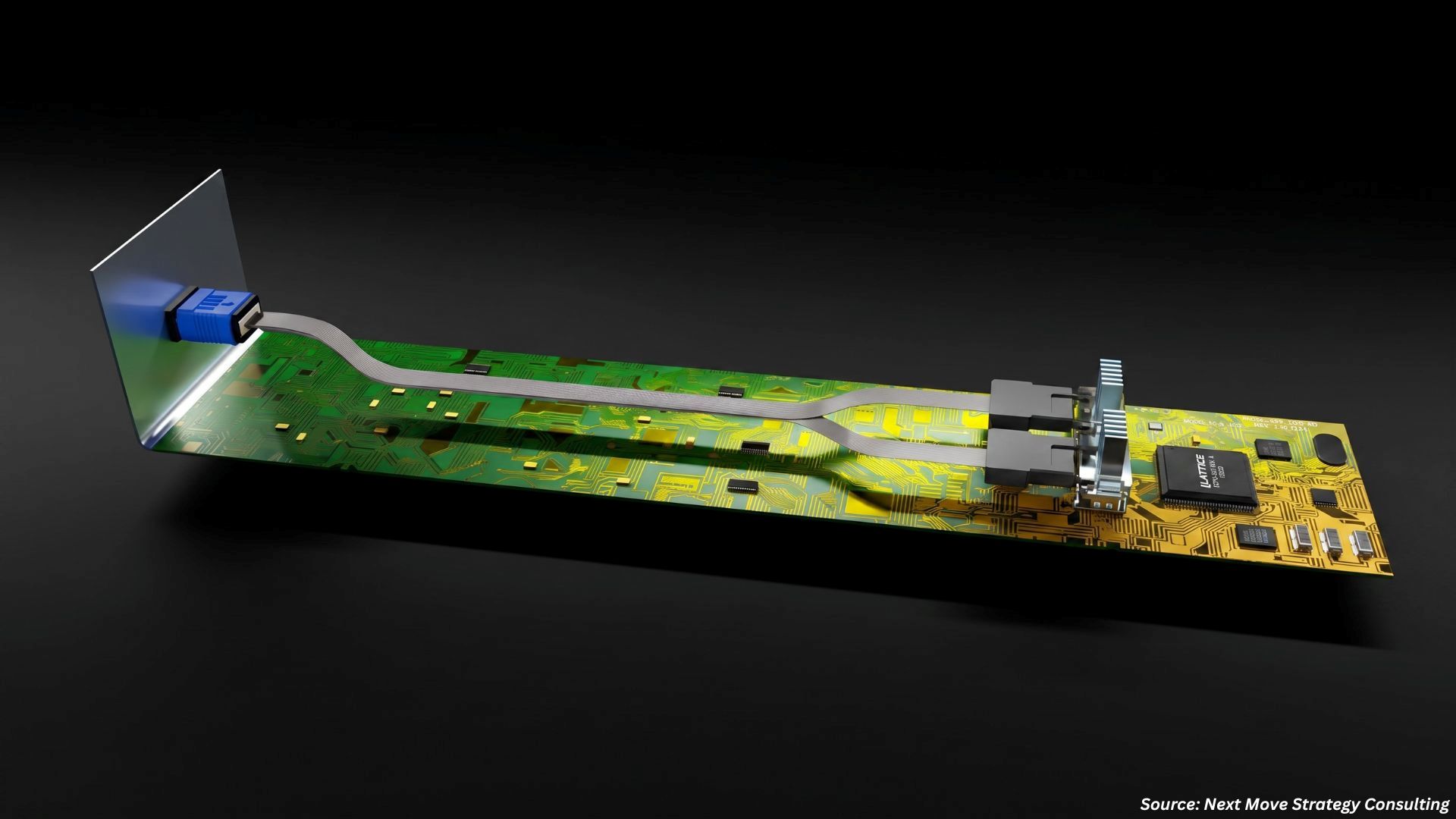

Monolithic Micro-LED technology is now extending beyond displays into optical communication systems for artificial intelligence infrastructure.

The company reported several performance characteristics, including a cut-off frequency exceeding 1 GHz and energy consumption below 2 pJ/bit. The prototype also supports massively parallel short-reach optical input and output pathways.

These developments are becoming increasingly relevant because AI systems require extremely high-speed data movement between servers and computing racks. Conventional electrical interconnects often create power and thermal challenges as data volumes increase. Optical communication systems based on Micro-LED architectures may help reduce these limitations. OSRAM explained that replacing single ultra-high-speed channels with hundreds of slower parallel channels can improve reliability, lower energy consumption, and simplify communication architecture.

How Does Monolithic Micro-LED Architecture Improve Display Efficiency?

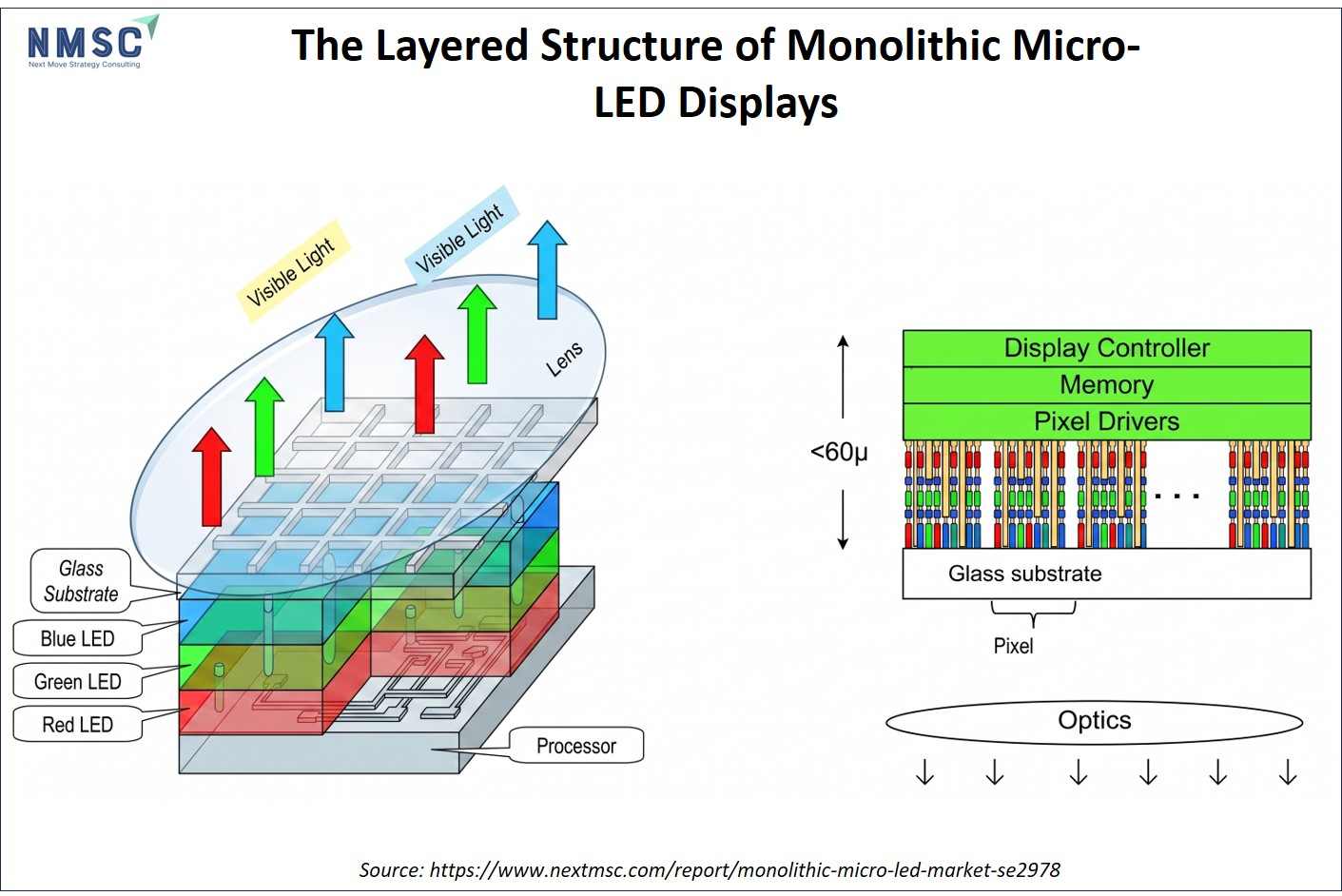

This image illustrates the structural design and working mechanism of a monolithic Micro-LED display system. The diagram highlights how red, green, and blue LEDs are vertically integrated within a compact architecture to generate visible light for advanced display applications.

On the left side, the layered structure shows separate red, green, and blue LED sections integrated beneath a glass substrate and connected to a processor. The emitted visible light passes through a lens system, demonstrating how the display produces high-brightness and high-resolution output in a compact form factor.

The right side of the image explains the electronic integration behind the display. Components such as the display controller, memory, and pixel drivers are stacked together within a structure measuring less than 60 μm. This highly compact arrangement supports efficient pixel-level control while reducing overall display thickness.

The image demonstrates why monolithic Micro-LED technology is considered highly suitable for augmented reality devices, smart glasses, and ultra-compact micro displays where space efficiency, brightness, and image precision are critical.

Why Are Slow-and-Wide Architectures Becoming Important?

The “slow-and-wide” communication model introduced by ams OSRAM represents a different approach to data transmission. Instead of relying on extremely high-frequency single channels, the architecture distributes data across multiple parallel optical pathways.

The architecture also improves thermal efficiency, which is becoming increasingly important for AI data centers operating under heavy workloads. Reduced heat generation provides additional operational flexibility for server infrastructure.

Another major advantage is simplified integration. Parallel Micro-LED communication systems can reduce the need for complex serialization and deserialization processes that are often required in conventional architectures.

Key Areas Driving Monolithic Micro-LED Development

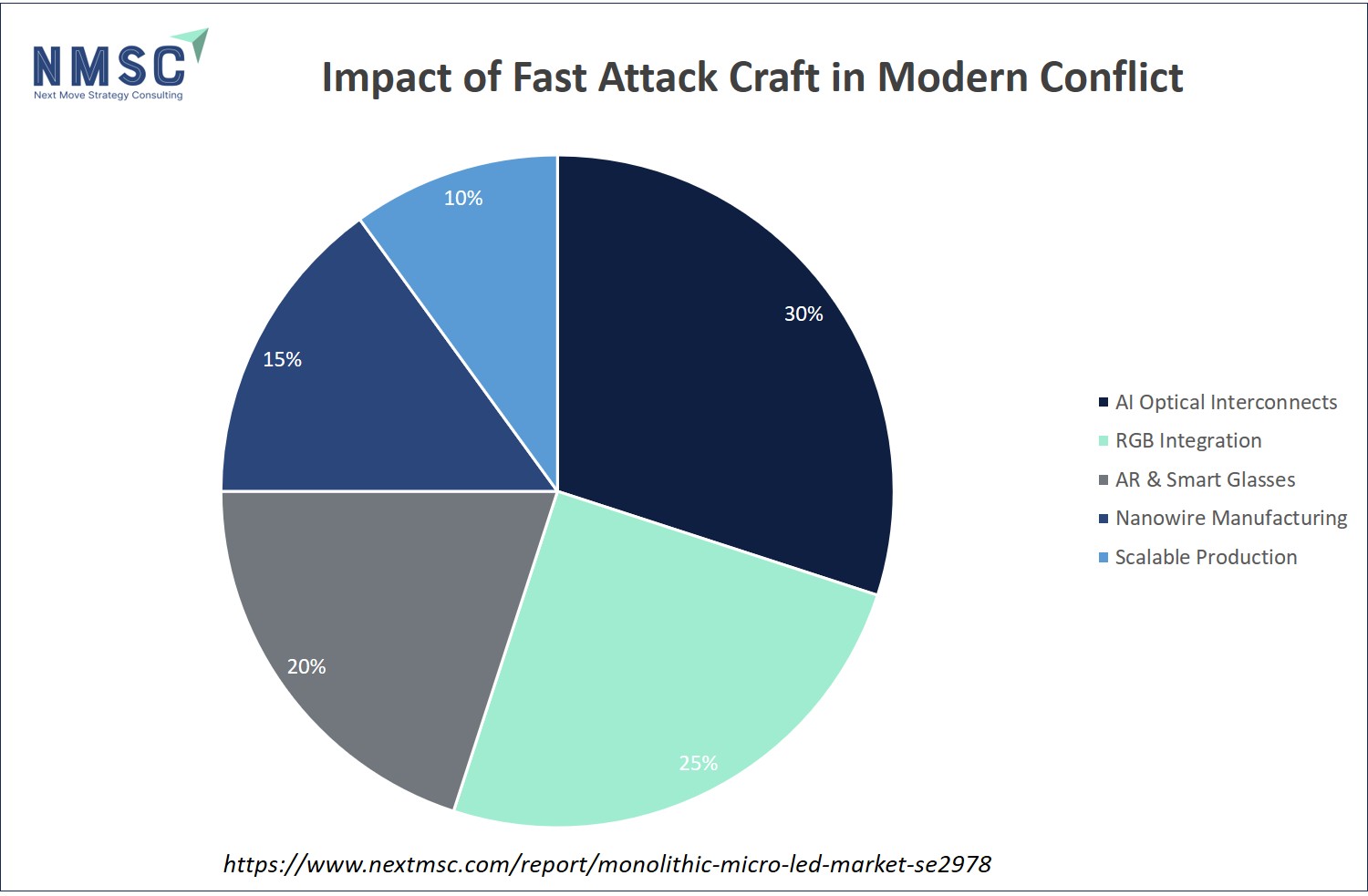

The pie chart highlights the major focus areas currently shaping the development of monolithic Micro-LED technology across display and AI infrastructure applications.

AI optical interconnects account for the largest share at 30%, reflecting the growing importance of energy-efficient optical communication systems for artificial intelligence servers and data centers. Companies are increasingly exploring Micro-LED-based optical pathways to reduce power consumption and thermal pressure in AI infrastructure.

RGB integration represents 25% of the chart, emphasizing industry efforts to simplify display manufacturing by integrating red, green, and blue emission directly onto a single wafer. This approach is helping improve scalability and compactness in next-generation displays.

AR and smart glasses contribute 20%, showing strong demand for ultra-compact, high-resolution display systems that support wearable technologies and immersive visual experiences.

Nanowire manufacturing holds 15%, highlighting the role of advanced nanowire structures in improving pixel density, efficiency, and monolithic integration capabilities.

Scalable production accounts for the remaining 10%, representing the industry’s focus on transitioning from prototype-level innovation toward large-scale commercial manufacturing.

Overall, the chart demonstrates how the monolithic Micro-LED industry is balancing advancements in display technology, AI communication infrastructure, and scalable manufacturing solutions.

Leading Companies Strengthening Innovation in Monolithic Micro-LED Technology

The monolithic Micro-LED industry comprises several major technology companies, including Apple Inc., Sony Corporation, Plessey, , SmartKem Inc., Lumens, SunDiode, Bridgelux, Inc., Intel Corporation, and Saphlux, among others. These companies are actively focusing on strategies such as product innovation, technological advancements, partnerships, and collaborations to strengthen their competitive position and expand their presence in the evolving monolithic Micro-LED landscape.

Major Trends Shaping the Present

Several important trends are currently influencing the direction of monolithic Micro-LED development.

Nanowire-based manufacturing is enabling more efficient RGB integration while supporting smaller and more compact pixel structures. At the same time, AI infrastructure growth is creating demand for low-power optical interconnect technologies capable of handling large-scale data movement.

Wearable technologies such as augmented reality smart glasses are also encouraging the development of ultra-small pixel pitches and compact light engines. In parallel, early manufacturing success from companies like Aledia suggests increasing confidence in the scalability of monolithic production approaches.

Next Steps

Companies developing monolithic Micro-LED systems are expected to focus on improving production scalability, reducing pixel pitch further, and strengthening integration with AI infrastructure.

• Monitor how manufacturers transition from prototype-level monolithic RGB integration to large-scale commercial production.

• Track advancements in sub-pixel pitch reduction, especially developments targeting 2.0 μm and below for ultra-high-resolution displays.

• Observe the adoption of Micro-LED optical interconnects within AI data centers as demand for energy-efficient communication infrastructure increases.

• Evaluate the role of monolithic Micro-LED technology in augmented reality smart glasses and compact wearable display systems.

• Follow improvements in nanowire-based manufacturing processes that can enhance scalability, efficiency, and long-term production reliability.
